30A White Ceramic High Voltage RF Relay Switch For Antenna Coupler Application
High voltage RF relay switches are designed to minimize signal distortion, ensuring that the RF signals passing through them maintain their original characteristics. This is achieved through careful design and selection of materials, contact configurations, and signal routing techniques.
Some high voltage RF relay switches offer fast switching speeds, allowing for rapid signal routing or switching operations. This is particularly important in applications where quick response times are required, such as in RF testing or modulation/demodulation systems.
These switches are capable of handling high power RF signals without significant degradation or damage. They are designed to have high power handling capabilities to accommodate the high voltage and high current demands of RF systems.

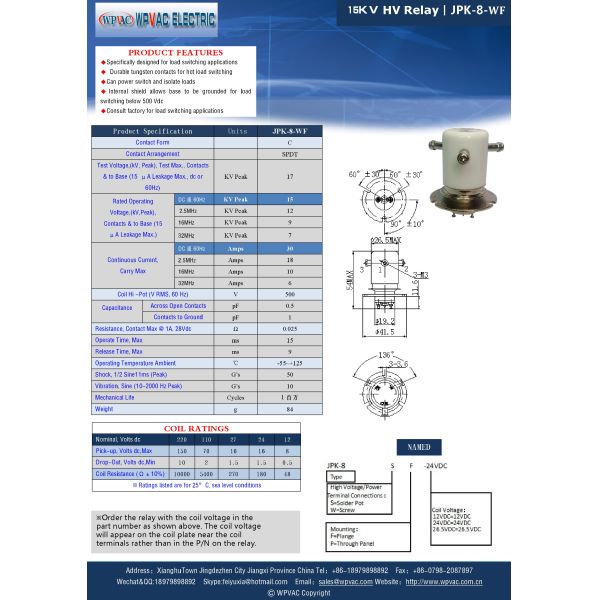

| Operating Voltage: | 15KV DC | Current Carry Amps (RMS): | 30A |
| Coil Voltage: | 12V | Contact Arrangement: | SPDT |
| Resistance, Contact Max @ 1A, 28Vdc: | 0.025Ω | Dimension: | Φ26.5*H54 |
| Mechanical Life: | 1Milion | Weight: | 84 |
Application for Relays:
Vaccum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low
leakage and high carry current applications.
• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment
vacuum relays play a vital role when high power and low RF losses are required.
• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles
Test Equipment & Instrumentation
